Automates nozzle cleaning, inspection, and setting

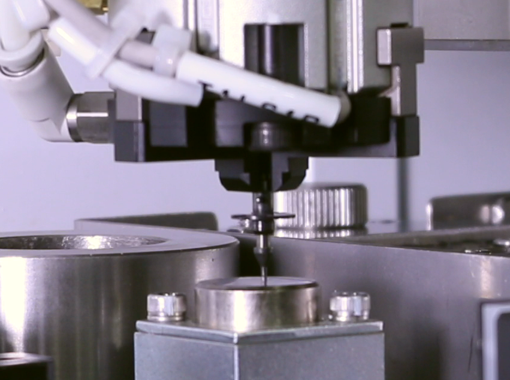

Periodic maintenance for nozzles, which could directly affect placement quality, is vital. Smart Nozzle Cleaner does not just clean nozzles, it also performs inspection for items that are difficult to inspect using visual checks by operators. The maintenance history and inspection results are automatically registered to the system.
Product Features

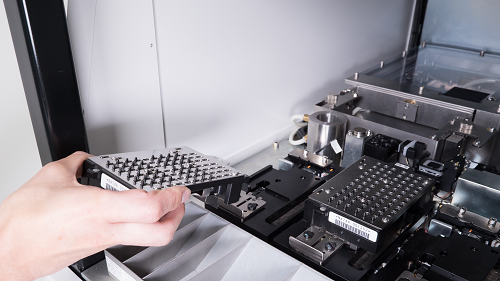

Since the Smart Nozzle Cleaner has a large storage capacity, it can be used as a nozzle stocker. Select the right type of operation for your production from the various available operation modes.
1. Normal operation
Sets nozzles in a nozzle station after cleaning and inspecting the nozzles.
2. Exchange operation
Exchanges the nozzles in the nozzle station that is set in the Smart Nozzle Cleaner with nozzles in the stocker which have been cleaned and inspected.
3. Stocker operation
Performs cleaning and inspection for uncleaned nozzles in the stocker.
4. Inspection operation
Performs inspection on nozzles in a nozzle station set in the Smart Nozzle Cleaner.
5. Manual operation
Sets the specified types and quantity of nozzles in a nozzle station, or discharges the nozzles onto a tray without setting them in a nozzle station.
